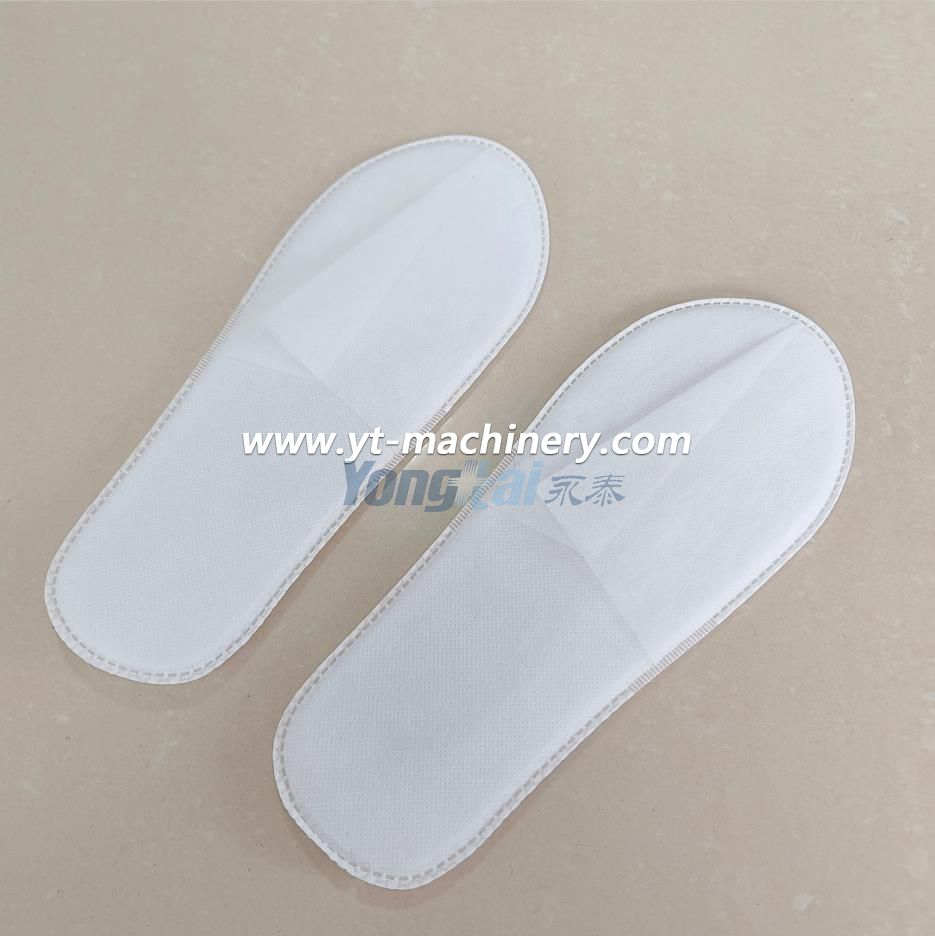

It is an automatic machine to produce elastic non-woven slipper. The products is applied to hospital, hotel, or spa place... Through ultrasonic technology combined with automatic control components, the products can realize the automatic production of each process, What’s more product size and shape can be customized according to demand, and can print personalized patterns to meet different needs, low-cost, high efficiency and high quality production!
Machine Model | YC500-23 |
Control Mode | Transducer control |
Machine Size | L524* W99* H163cm ①Materials planes：L260*W78*H150cm ②Ultrasonic weld and cut：L165*W80*H170cm ③Output parts planes：L160*W110*H170cm |
Packing size | Packing way：2PLYWOOD CASES ①L280*W95*H190cm ②L345*W130*H210cm |
Voltage | AC220V 60HZ ≤ 18A |
Pressure | 7kg/cm² |
Rated Power | 6.8KW |
Actual power | 5.5KW |
Ultrasonic power | 1500W* 3sets |
Main motor | 1.5KW*1set |
Capacity | 60-100pcs/min |
Power | 7KW/H |
